Big-time Close Air Support for ground troops: the AC-130H/U.
The AC-130 gunship's primary missions are close air support, air interdiction and force protection. Missions in close air support are troops in contact, convoy escort and urban operations. Air interdiction missions are conducted against preplanned targets or targets of opportunity. Force protection missions include air base defense and facilities defense.

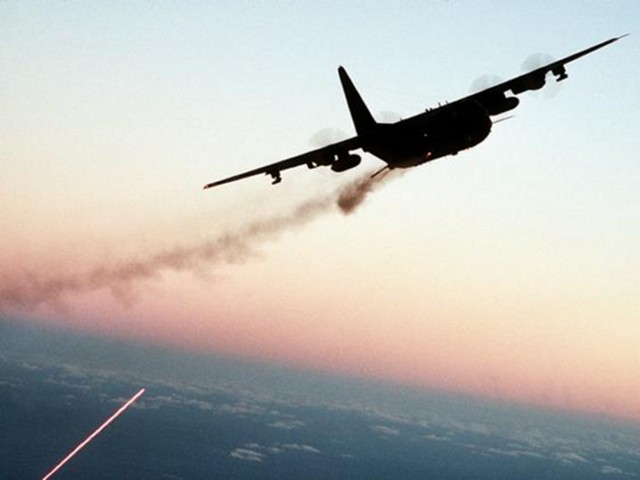

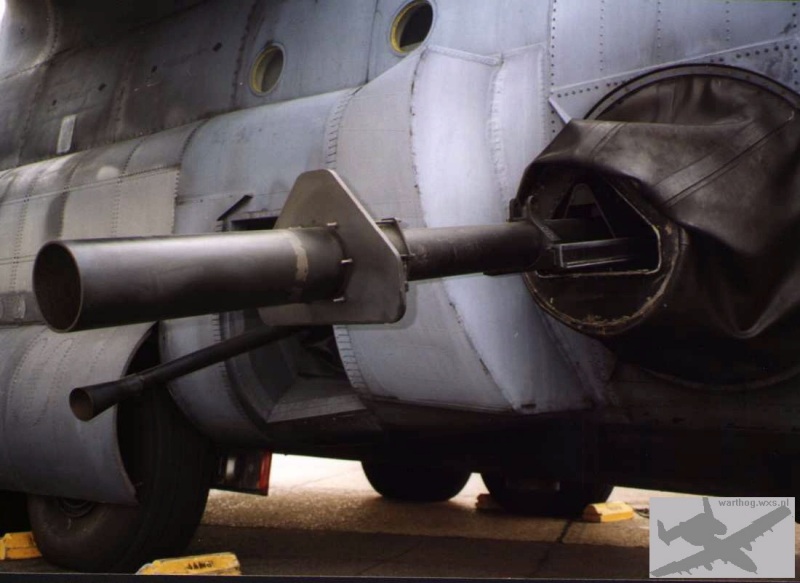

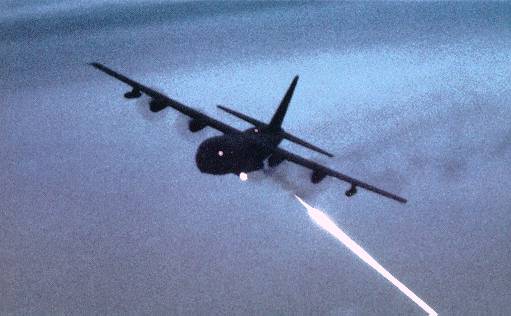

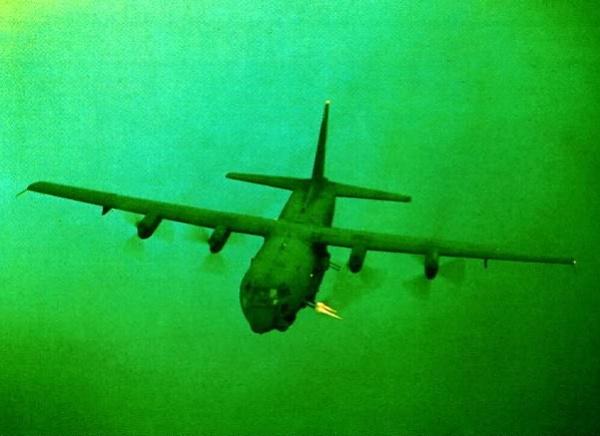

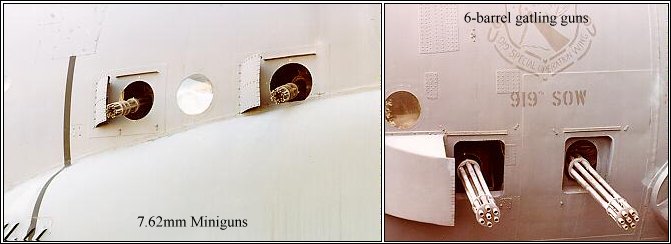

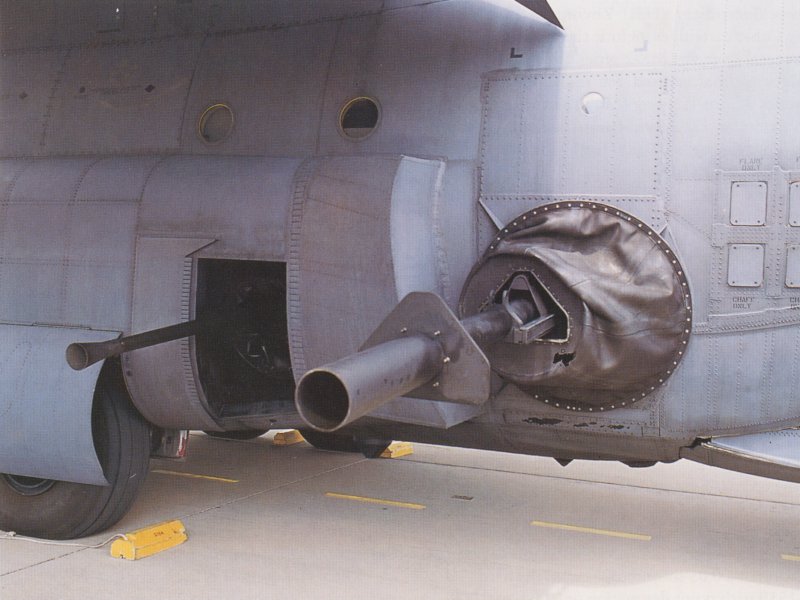

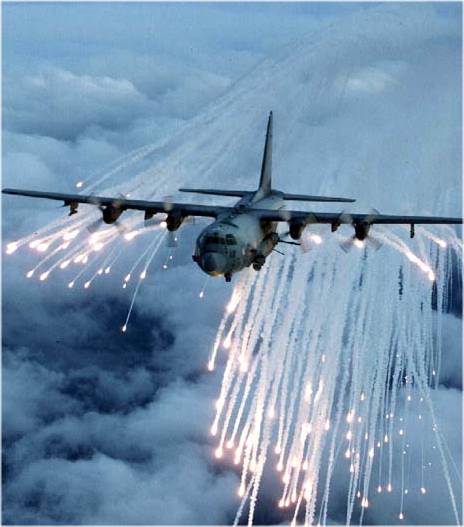

These heavily armed aircraft incorporate side-firing weapons integrated with sophisticated sensor, navigation and fire control systems to provide surgical firepower or area saturation during extended loiter periods, at night and in adverse weather. The sensor suite consists of a television sensor, infrared sensor and radar. These sensors allow the gunship to visually or electronically identify friendly ground forces and targets any place, any time. The AC-130U employs synthetic apertures strike radar for long-range target detection and identification. The gunship's navigational devices include the inertial navigation systems and global positioning system. The fire control system offers a Dual Target Attack capability, whereby two targets up to one kilometer apart can be simultaneously engaged by two different sensors, using two different guns. No other air-ground attack platform in the world offers this capability. Navigational devices include the inertial navigation system (INS) and global positioning system (GPS). The aircraft is pressurized, enabling it to fly at higher altitudes, saving fuel and time, and allowing for greater range than the AC-130H. Defensive systems include a countermeasures dispensing system that releases chaff and flares to counter radar infrared-guided anti-aircraft missiles. Also infrared heat shields mounted underneath the engines disperse and hide engine heat sources from infrared-guided anti-aircraft missiles. It also has twice the munitions capacity of the AC-130H.

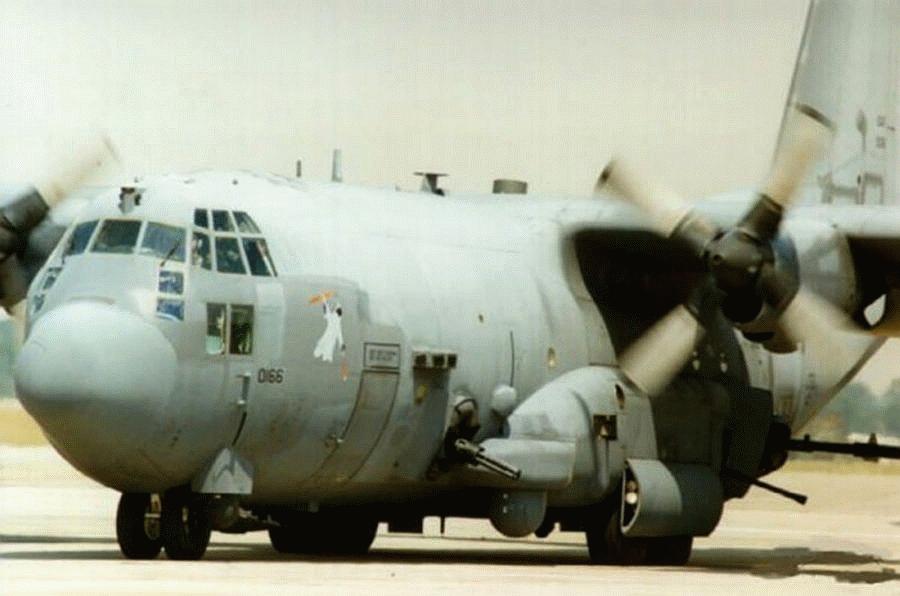

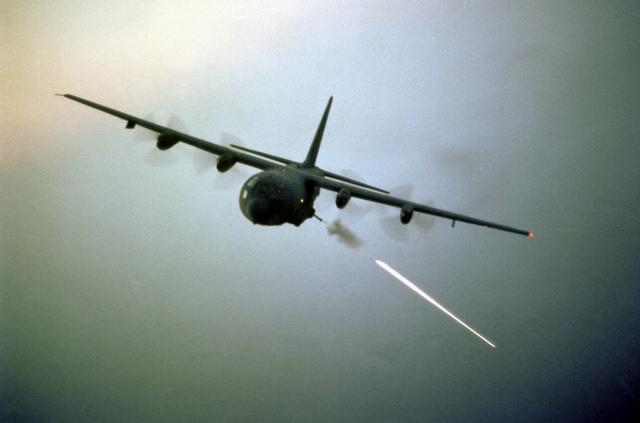

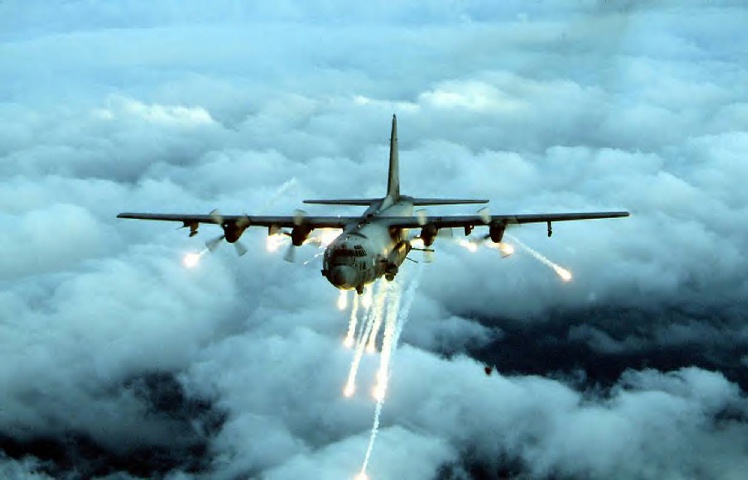

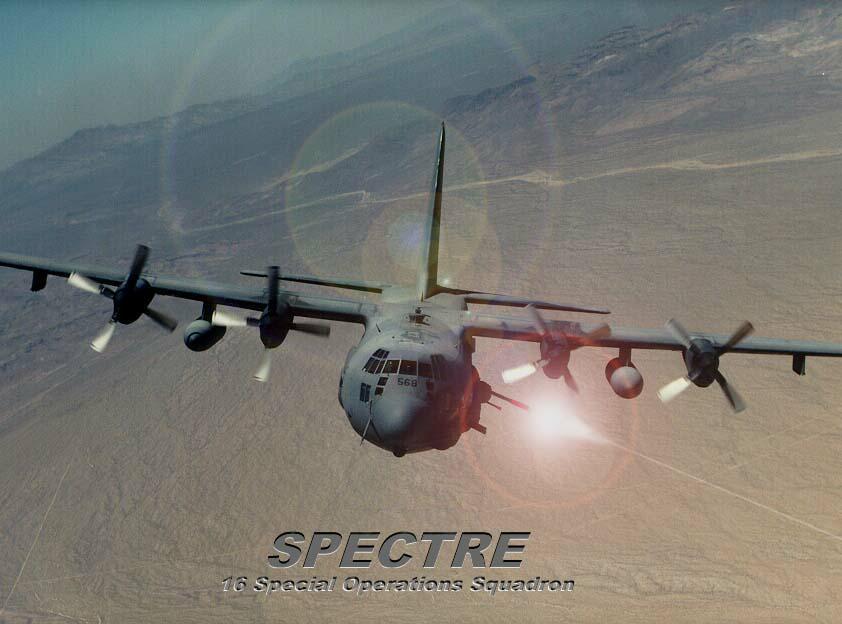

The AC-130H's call sign is "Spectre." The AC-130U's call sign is "Spooky," and traces its history to the first operational gunship, the AC-47. The U-model is the third generation of C-130 gunships.
The AC-130 gunship has a combat history dating to Vietnam. Gunships destroyed more than 10,000 trucks and were credited with many life-saving close air support missions. During Operation Urgent Fury in Grenada in 1983, AC-130s suppressed enemy air defense systems and attacked ground forces enabling the successful assault of the Point Salines Airfield via airdrop and air land of friendly forces. The AC-130 aircrew earned the Lt. Gen. William H. Tunner Award for the mission.
AC-130s also had a primary role during Operation Just Cause in Panama in 1989 when they destroyed Panamanian Defense Force Headquarters and numerous command and control facilities. Aircrews earned the Mackay Trophy for the most meritorious flight of the year and the Tunner Award for their efforts.
During Operation Desert Storm, AC-130s provided close air support and force protection (air base defense) for ground forces. Gunships were also used during operations Continue Hope and United Shield in Somalia, providing close air support for United Nations ground forces. More recently, gunships played a pivotal role in supporting the NATO mission in Bosnia-Herzegovina. The AC-130H provided air interdiction against key targets in the Sarajevo area.
In 1997, gunships were diverted from Italy to provide combat air support for U.S. and allied ground troops during the evacuation of American noncombatants in Albania. Gunships also were part of the buildup of U.S. forces in 1998 to convince Iraq to comply with U.N. weapons inspections.
Function: Close air support, air interdiction and force protection
